Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores

Brand Name : STT

Model Number : UCM400

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 90 days

Packaging Details : seaworthy packing

Machine name : silicon steel cutting machine

Function : making core

Sheet width : 40-400mm

Sheet thickness : 0.2-0.35mm

Decoiler capacity : 1000kg

Air source : 0.8Mpa

Color : as requested

Warranty : 12 months

Contact Now

Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores

Description of silicon steel cutting machine UCM400

The silicon cutting machine UCM400 is designed for making gap wound cores. This kind of cores can be used in transformers and other similar products. With a HMI, the parameters can be set through the screen. The silicon steel cutting machine can feed both single strip and double strips, which improves the production efficiency.

Quick details of silicon steel cutting machine UCM400

Unicore cutting machine
Two heads decoilers
Single silicon steel strip maximum width 400mm
Double silicon steel strip maximum width 190mm
Air source 0.8Mpa
12 months warranty period

Main parameters of silicon steel cutting machine UCM400

Typical standard specifications of UCM400 are shown below, however these can be easily modified as requested.

1	Applicable Transformer High Voltage:	HV: 10～35kV
2	Applicable Transformer Capacity:	30KVA～3150KVA
3	Single silicon Steel Strip Width:	400mm, maximum
4	Double Silicon Steel Strip Width:	190mm, maximum
5	Air Source:	0.8Mp
6	Bending Angle:	45°
7	Bending Speed:	0.5s
8	Cutting Speed:	0.5s
9	Silicon steel thickness:	0.2～0.35mm
10	Decoiler Capacity:	1000kgs

Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores

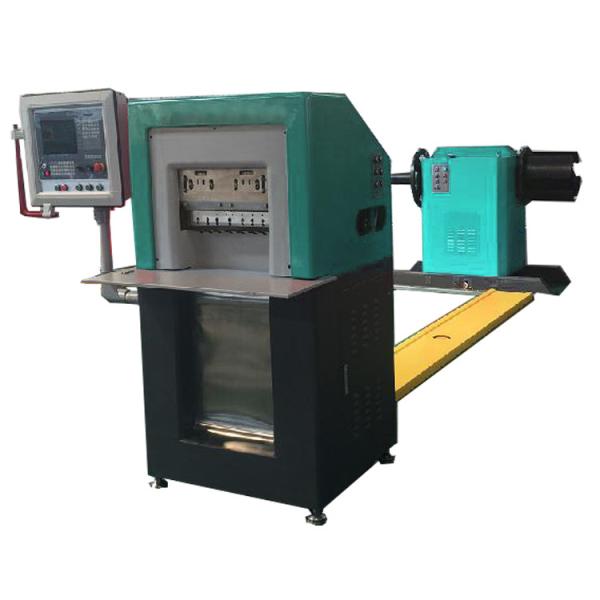

Fig 1: Unicore cutting machine UCM400's full view

Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores

Fig 2: Unicore cutting machine UCM400's cut product

Automatic Silicon Steel Cutting Machine Making 3D Unicore Gap Wound Cores
